Project Background
The Neighbourhood Centre Yarrabilba was a mixed-use commercial development located at 280 Yarrabilba Drive, designed to service the growing Yarrabilba community. The project was set across an 8,836sqm parcel of land with dual street access.
Built by Corella Constructions, the centre included a range of retail, food, fitness, childcare, office and medical-style tenancies, supported by on-grade car parking and vehicle access throughout the site.
The project required structural engineering input to support a practical, flexible and durable commercial building suitable for multiple tenants, daily public use and future fit-out requirements.
Our Brief
Our engineering scope included the structural design and documentation required to support the building, car parking areas and associated external works.
Our scope included all major structural elements, including slabs and footings, structural walls, suspended and upper-level floor framing, structural steel framing, roof framing, blockwork and wall support, bracing and tie-downs, awning and façade support, retaining elements and external structural works.
The consultant team included two architectural firms, civil engineers, hydraulic engineers, mechanical and electrical engineers, a private certifier and other specialist consultants. Close coordination was required across the full project team to align structural design with building services, access requirements, tenancy layouts and future fit-out needs. The structure needed to allow for flexible commercial use while maintaining efficient construction, long-term performance and compliance with commercial building requirements.
Engineering Considerations
A neighbourhood centre of this type required careful coordination between the building structure, services, access, car parking and future tenant fit outs.

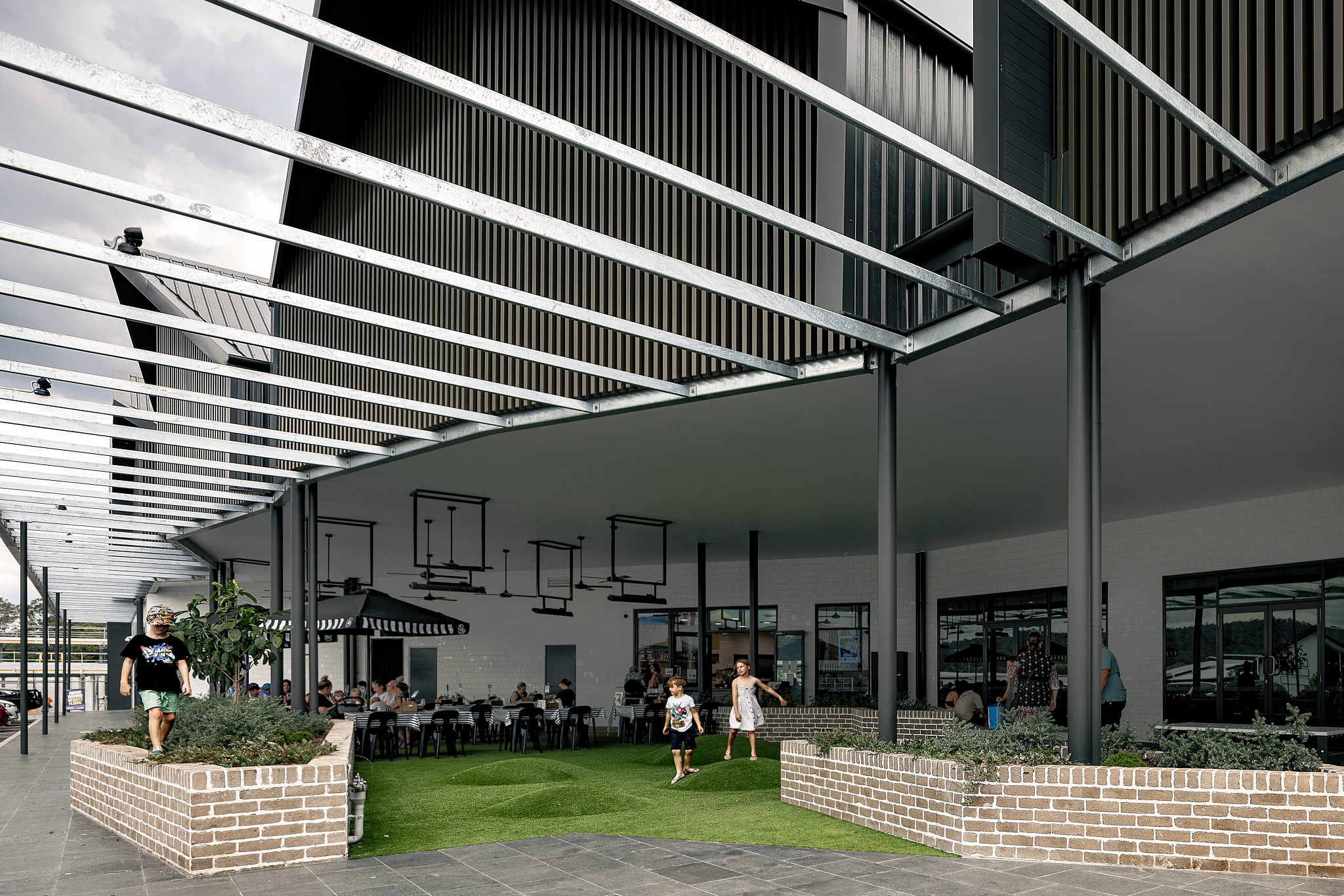

The structural design needed to support large open commercial spaces, clear internal layouts, shopfront glazing, signage zones, awnings, roof plant areas and high-traffic public spaces.
A key part of the structural design involved the centre’s complex roof forms, which needed to integrate with concrete precast wall panel construction and a mix of internal first-floor suspended concrete slabs. Further complexity was added by the fully airconditioned nature of the building, with support for mechanical plant required to be carefully integrated into the structure. These elements needed to perform efficiently while remaining concealed from internal spaces and street views.
The building also needed to accommodate a variety of tenancy uses, including food and beverage, fitness, childcare, office and medical-style spaces. This required consideration of floor loading, service penetrations, roof plant support, grease trap access, accessibility and future fit-out flexibility.
External areas were also an important part of the engineering design. Car parking, vehicle circulation, pedestrian access, drainage, retaining elements and loading areas all needed to be coordinated with the building structure and site conditions.
The Outcome
The completed centre provided a practical and flexible commercial hub for the Yarrabilba community.
Our structural engineering supported a robust, buildable and adaptable development capable of accommodating multiple tenants and ongoing public use.
Through coordinated engineering design, the project delivered a functional neighbourhood centre with the structural capacity, access, durability and flexibility required for long-term commercial operation.
